They can solve the problem of non-standard reader incompatibility with the access controller.
Key Features
● Wiegand to ABA or ABA to Wiegand
● RS485 to Wiegand or ABA
● 5V DC power output
● Customized according to customer requirements

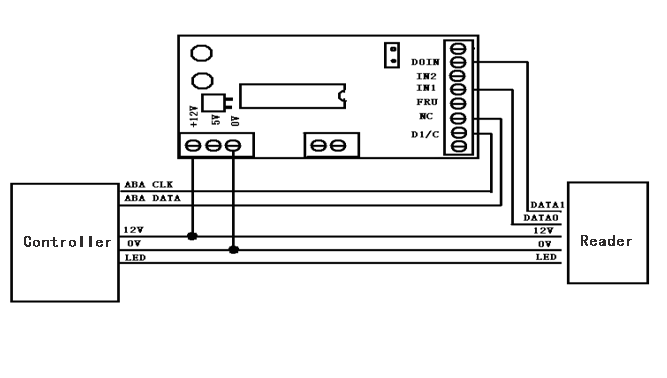

Wiring diagram
Specification
| Model | MGcross WA / MGcross AW |
| Dimension | 75*32*15mm |
| Temperature/Humidity | 0℃—+55℃，0—95%(Non-condensing) |
| Power | DC 12V±10%, 30mA |
| Indicate light | 1 LED light indicate power and communication status |
