Based on the proven NFC technology, these access control card readers provide a robust, flexible and highly secure solution. Elaborate design, with aluminium alloy frame and high strength toughened glass panel, Provides maximum water and dust ingress protecion allowing it to be mounted both inside and outside, All of the main industry standard output formats are supported allowing direct connection to all the current range of Jadton access control units as well as access control panels from other manufacturers.
Key Features
● Compatible with ISO14443 typeA/B standard card technology
● NFC technology
● Good read range and excellent reliability
● Sensitive and rapid card reading; easily installed
● Stylish, elegant design
● Wiegand or ABA output format
● 2 DIP switch to set format
● Compatible with standard 86 bottom box
● Waterproof design allows reader to be mounted both inside and outside
● Unambiguous audible and visual indication of card reads and access status
● Compatible with all standard access control systems
Specification

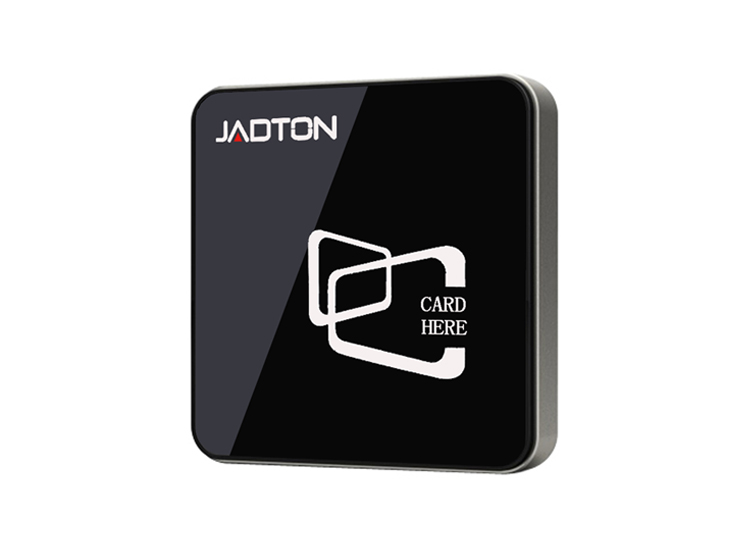

Model | MG-R100 |
Dimension | 86 x 86 x18mm |
Temperature/Humidity | -5℃ — +55℃,0—100%RH(non-condensing) |
Power | 8-15VDC,100mA Max |
Standard | ISO14443 TypeA/B smart card |
Sound device | Buzzer Inside |
Indicate light | Two colour backlight |
Distance | Standard card 80mm,key tag 30mm |
Output format | Wiegand,ABA |
