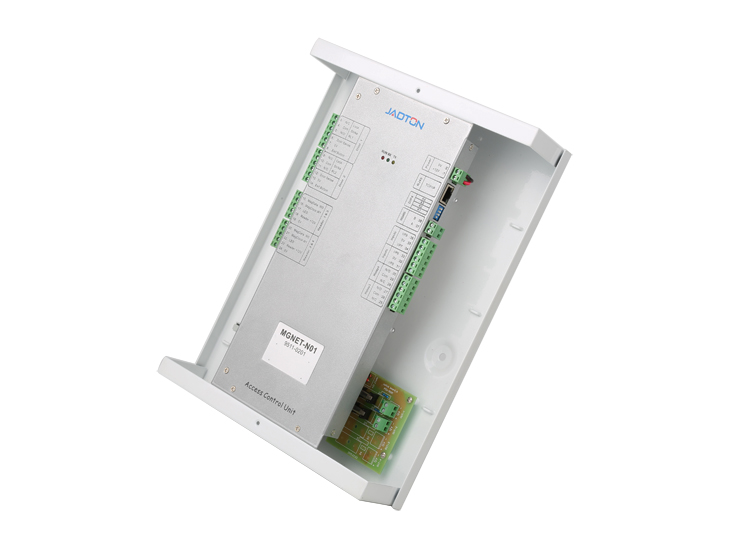

A fully featured networkable 2 doors access control unit, MGnet N01 boasts a high specification with fast communication and capacity for up to 100,000 cards, making it suitable for very large access control project. Such as transportation, education, health and commercial buildings. Connected directly to your network via true TCP/IP, fast communication rate with 100Mbps; MGnet N01 can work independently after off-line. Spare inputs and outputs be allowed flexible configuration.
Key Features
● Adopting 32-bit embedded CPU, with strong processing capability
● Connect via true IP, fast communication rate
● Multi-card check feature, up to 9 cards
● Support mantrap function
● Timed and True anti-passback
● Support card, card+PIN, PIN only mode
● Opening or closing door timed
● Programmable input and output can be connected to third systems
● Support fire door release
● Large capacity, low power consumption, static memory; without read/write lifetime limit
● 100,000 card capacity and 100,000 event capacity offline status
● Monitored input
● Support relay inverted function
● Detect power supply level and alarm when voltage is high or low
Specification
| Model | MGnet N01 |
| Dimension | 320*255*75mm |
| Weight | 3.8kg |
| Temperature/Humidity | -10～+45℃，0～95%RH（non-condensing） |
| Power | 220VAC or 12VDC,500mA |
| Communication interface | TCP/IP |
| Communication rate | 10/100M recognize automatically |
| Reader Interface | 2(connect 4 Jadton readers) |
| Format | Wiegand and ABA(recognize automatically) |
| Relay | 4 |
| Input | 8 |
| Card Capacity | 100,000（adjust dynamically） |
| Event capacity | 100,000（adjust dynamically） |
| Status LEDs | yes |
Ordering Information
● MGnet N01 access control unit
● AC-PSU4A linear power supply(host 1A, electric lock 3A)
● DC-PSU5A switching power supply
● MGsmart reader
● MGsmart2 reader
● MGsmart2K reader
Topological graph
