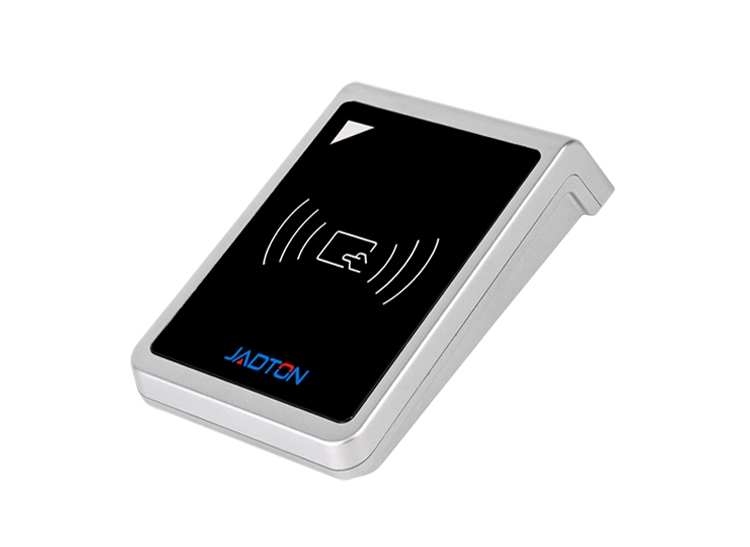

Jadton USB desktop enrollment card readers can be used to enroll user card easily. It can be connected to computer by USB port. No need to install any driver. buzzer inside and Red/Green LED lights indicate mode and status. The card information will be shown in the box automatically after presenting card on it. The reader supports dual technology ,it can recognize proximity card and smart card at the same time.
Key Features
● USB powered no additional power supply required
● Stylish, elegant design
● Simple to install , Minimises installation time and cost
● No need to manually enter a card number
● Buzzer inside
● Dual LEDs display current working states
● Duel technology，Support 125KHz proximity card and ISO 14443 TypeA 13.56MHz smart card
Specification
| Model | MGdreader-P | MGdreader-S |
MGdreader-PS |
MGdreader-RW |
| Dimension | 150*98*30mm | |||
| Temperature/Humidity | -5℃ — +55℃，0—95%RH(Non-condensing) | |||
| Power | USB Port（DC5V±5%,100mA) | |||
| Frequency | 125KHz | 13.56MHz | 125KHz 、13.56MHz | 13.56MHz |
| Output format | ABA or wiegand，can be customized | |||
| Interface with PC | Standard USB1.1 | |||
| Indicate light | Red/Green LED lights | |||
| Sound device | Buzzer Inside | |||
| Distance | 50mm | |||
| Support function | Only read | Only read | Only read | Read and write |
