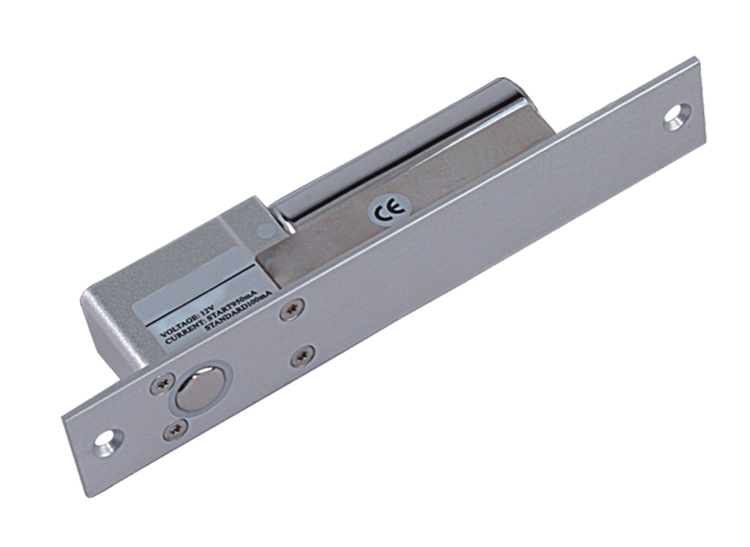

Electric Bolt Lock
Electric Bolt Lock

MG-YB-100+ Electric bolt lock (also known as "anode lock") is suitable for general glass doors, wooden doors, metal doors, etc. It adopts high strength aluminum alloy lock body, Stainless steel lock tongue, special photoelectric control ultra-low temperature and ultra-low efficiency design, which can make access control automation safer, ultra-low power design, more environmentally friendly and durable.

Specification

Model MG-YB-100+
Face Plate Dimension 205Lx3W5x40H(mm)
Strike Dimension 90Lx25Wx2H(mm)
Input Voltage 12VDC
Start Current 900mA
Standby Current 110mA
Solid Bolt Polishing Housing, 800Kg Holding Force
Suitable Wooden Door,Glass Door,Metal Door
Autolock Time Delay 0/3/6/9sec
Signal Output Door status Output,NO/COM
Operating Temperature -10~+55℃
Operating Humidity 0—90%RH
Weight 0.72KG
