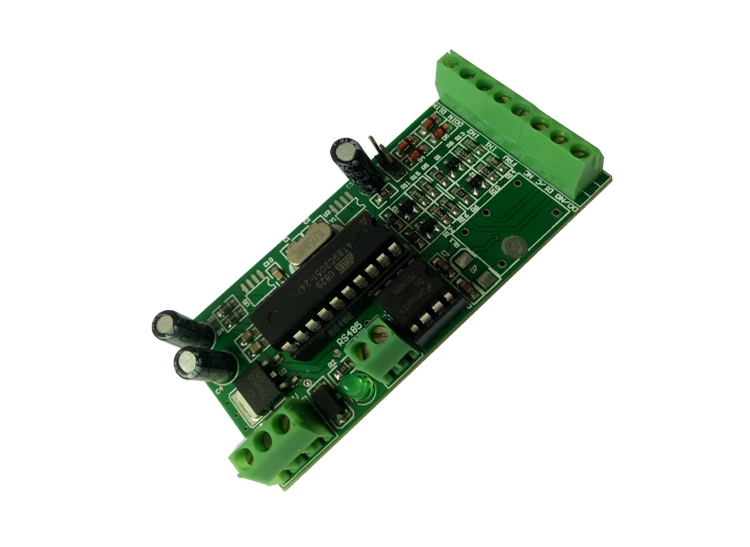

It offers a more stable and reliable signal transmission between the reader and controller,Support Wiegand and RS485 interconversion, High security, stable performance.
Key Features
● Support Wiegand and RS485 interconversion
● Output format could be customized
● Increase the distance to 1200m between reader and controller
● Low power consumption, stable performance

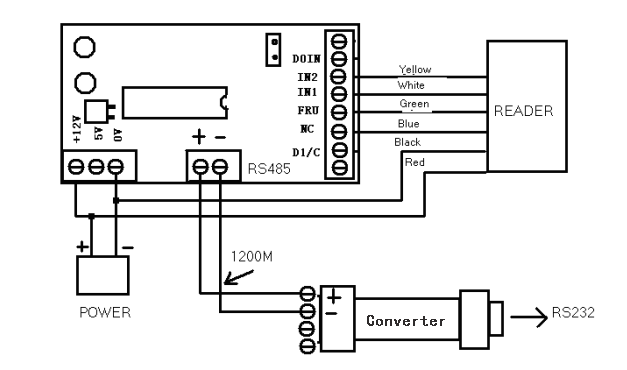

Wiring diagram
Specification
| Model | MGcross A4/MGcross 4A/MGcross W4/MGcross 4W |
| Dimension | 75*32*15mm |
| Temperature/Humidity | 0℃—+55℃，0—95%(Non-condensing) |
| Power | DC 12V±10%, 30mA |
| Indicate light | 1 LED light indicate power and communication status |
