Do you often use the all-in-one access control unit? It is a very convenient solution that a single door can be controlled only by an all-in-one unit, plus the exit button, power supply and electric lock.

This solution is not perfect. It may have the following problems:

1. Low safety, anyone can open the door by disconnecting the electric lock line which connected to the all-in-one unit installed outdoors;

2. The authorization management is inconvenient. It can only be operated on the small screen of the all-in-one unit, or add cards by the master card;

3. Poor aesthetics, even if you are not satisfied with the appearance of the outdoor all-in-one unit, you cannot replace it;

In order to solve the above problems, our company has launched a new access control all-in-one unit which via WIFI to manage all datas. The all-in-one unit can be installed indoors on 86 bottom box. The card reader with Wiegand output interface outdoors is connected to the all-in-one unit. With the power supply and electric lock, whole system can control one door. You can use the browser in any mobile phone or computer to connect to the unit for management without installing any software. You can see the screenshot of the management interface below to see how easy it is. In order to make installation word easier, our company also provides 12V power supply based on 86 bottom box for this all-in-one unit.

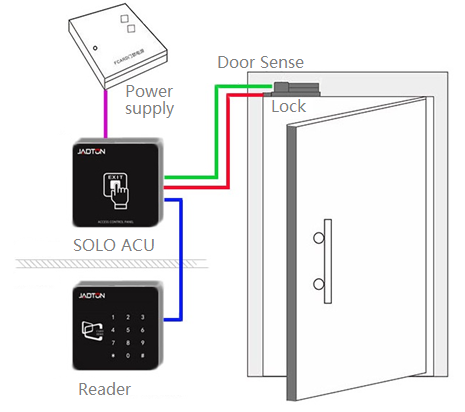

Well, let's take a look what equipment are needed to control a door:

1. Our WIFI solo access control unit (built-in exit button, 86 bottom box installation)

2. Card reader, or other devices which have wiegand interface (any brand, such as HID)

3. 86 bottom box power supply (110-220VAC to 12VDC), of course, any other 12V power supply can be used. To control the lock, at least 1.5 A is required

4. Electric lock (magnetic lock, bolt lock, electric lock), which is related to your door

For the above equipment, we provide combination options. Please provide your requirements.

We provide OEM customization services. The product appearance and the content of the built-in web page can be changed according to your requirements.

Key Features

● Compatible with standard 86 bottom box

● Stylish, elegant design

●  Built-in touch exit button

●  Using aluminium alloy frame and high strength toughened glass panel

●  Managed by mobile phone via WIFI

●  DC12V power supply，Low power consumption, stable performance

●  Support wiegand or ABA reader

Specification
