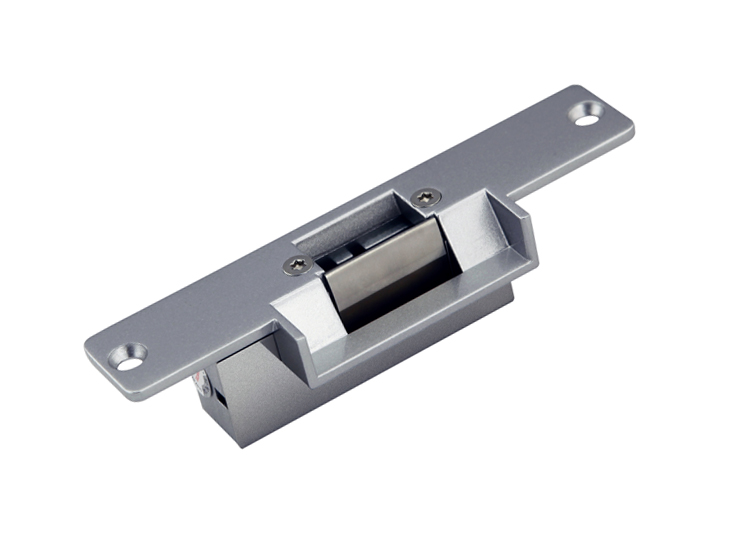

MG-YS-130NO/NC standard electric strike lock is suitable for general wooden doors, metal doors, PVC doors, etc. The surface is made of high-temperature metal paint, beautiful and durable, 304 stainless steel lock tongue structure, can withstand 500 KG thrust impact, and the electric locks are locked or unlocked by the working principle of electromagnetic driving or pulling release rod.
Specification
| Model | MG-YS-130NO/NC |
| Dimension | 150Lx39.5Wx33.5H(mm) |
| Holding Stength | 500kg |
| Input Voltage | DC12V (Need Order DC24V) |
| Current | 240mA(YS-130NO); 200mA(YS-130NC) |
| Feature | Fail Secure(YS-130NO) ;Fail Safe(YS-130NC) |
| Suitable | Wooden Door,Metal Door,PVC Door |
| Operating Temperature | -10~+55℃ |
| Operating Humidity | 0—95%RH |
| Weight | 0.4KG |
