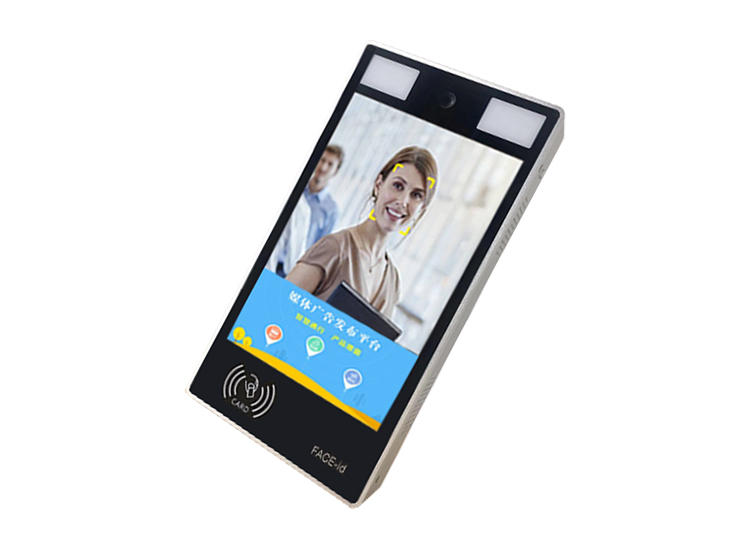

Email:cyrus@jadton.comMG-F100 Face Recognition Device is a high-tech access control equipment specially designed for intelligent buildings, tourist attractions and rail transit. It uses 10.1-inch IPS HD display screen and Intel quad-core processor, and uses autonomous algorithm to make face recognition more precise and faster. It also has abundant interfaces to connect with peripheral devices to realize system integration.
Key Features
● Built-in dynamic face recognition system, real-time and efficient recognition and verification of
user's face information
● Independently developed high-performance dynamic face recognition algorithm, accurate
recognition of various types of faces
● Face recognition accuracy is as high as 99.99%, and recognition speed is less than 1 second
● Supports on-line work of ethernet and 3G/4G/WIFI module,supports off-line work as well
● Support Wiegand signal output/input, multi-group Relay signal output
● Integrating environmental ray detection algorithm and built-in automatic light compensation
system to make recognition more accurate
● Support the background management of face recognition system, Support routine attendance
settings, scheduling management, attendance statistics, data reports output
● Support data docking with integrated projects such as LED screen, intelligent site, Scenic spot
charged, labor site, etc
Application

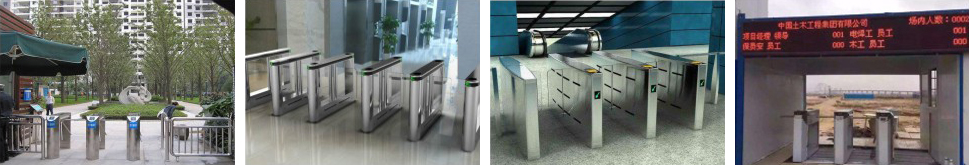

Living quarters Intelligent Building Subway station Construction site
Specification
Model | MG-F100 |
Dimension | 136*316*46mm |
Temperature/Humidity | -10~+55℃,5~90%RH(non-condensing) |
Weight | 1.8K(No base) |
Power | DC12V/3A |
CPU | Intel Quad-Core 2.0GHz 22nm Processor |
Memory | DDR3 2GB |
Hard Disk | 32GBSSD |
Display | 10.1" HD IPS LCD,Resolution:1920*800 |
Video Module | Monocular Wide Dynamic Camera |
Effective Pixels | 200W (1920* 1080) |
Recognition Scope | Height:1.2~2.2 meters,Distance:0.5-5 meters |
Face Storage Capacity | 5000/10000 |
Relay | 2 (NC/COM/NC) |
Wiegand Output | 2 (Wiegand 26 or Wiegand 34) |
Wiegand Input | 2 (Wiegand 26 or Wiegand 34) |
Ordering Information
● MG-F100
● MG-F100+Smart card(13.56MHz)
● MG-F100+Proximity card(125KHz)
● MG-F100+Identity card
