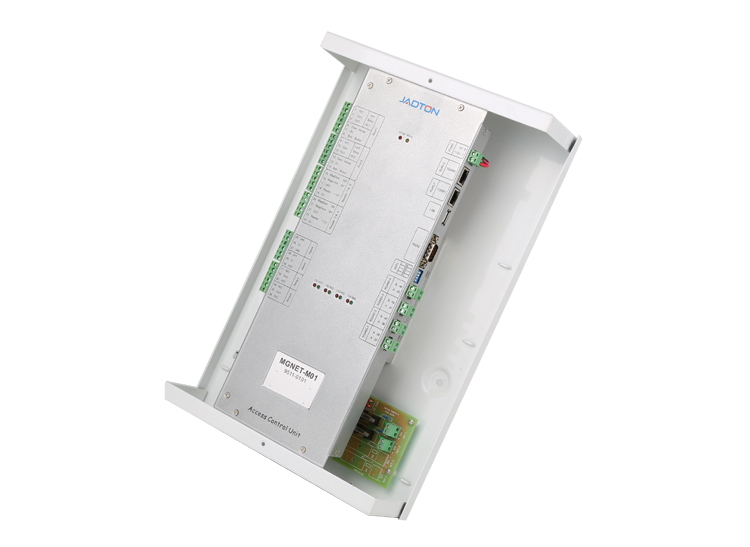

A fully featured networkable access control unit, MGnet M01 have dual network port and 4 RS485 ports ,boasts a high specification with fast communication and capacity for up to 200,000 cards. Up to 32 MGnet M02 slave units can be connected to each MGnet M01 controller allowing complete autonomous control of up to 66 doors in one sub-system.It is suitable for very large access control project. Such as transportation, education, health and commercial buildings. Case and Cabinet installation available.
Key Features
● Adopting 32-bit embedded CPU, with strong processing capability
● 4 RS485 communication interface, Dual ip port
● Can manage up to 32pcs local control units
● Embed linux operation system
● Multi-card check feature, up to 9 cards
● Support mantrap function
● Timed and True anti-passback
● Support card, card+PIN, PIN only mode
● Opening or closing door timed
● Programmable input and output can be connected to third systems
● Support fire door release
● Large capacity, low power consumption, static memory; without read/write lifetime limit
● 200,000 card capacity and 100,000 event capacity offline status
● Monitored input
● Support relay inverted function
● Detect power supply level and alarm when voltage is high or low
Specification
| Model | MGnet M01 |
| Dimension | 410*390*90mm（case）or 1.5U（cabinet） |
| Weight | 6.8kg(case) or 3kg(cabinet） |
| Temperature/Humidity | -10～+45℃，0～95%RH（non-condensing） |
| Power | 220VAC or 12VDC,500mA |
| Communication Interface | 2 RJ45（10/100M recognize automatically） |
| RS485 Communication Interface | 4 |
| Reader Interface | 2(connect 4 Jadton readers) |
| Format | Wiegand and ABA(recognize automatically) |
| Relay | 4 |
| Input | 8 |
| Card Capacity | 200,000（adjust dynamically） |
| Event Capacity | 100,000（adjust dynamically） |
| Status LEDs |
yes |
Ordering Information
● MGnet M01 access control unit (cabinet)
● MGnet M01 access control unit (case)
● MGnet M02 local control unit
● AC-PSU1A linear power supply (1A)
● DC-PSU3A switching power supply (3A)
Topological graph
