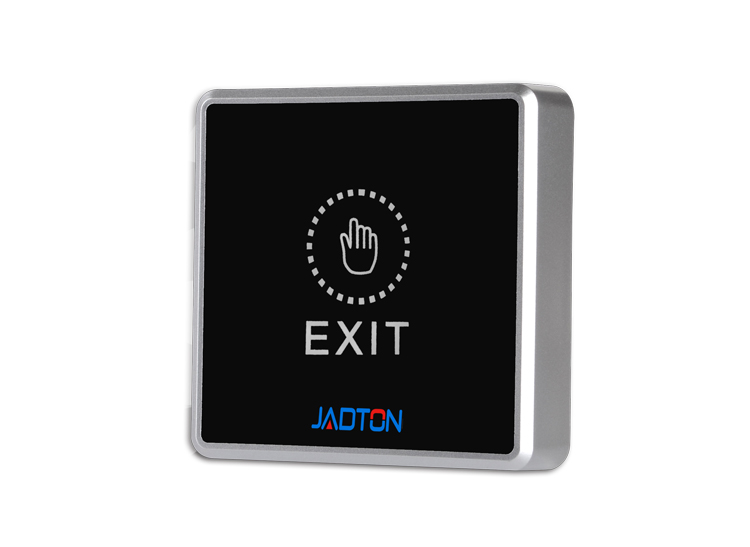

With finger touch the panel, relay triggered, output Form-C relay signal; finger release, the relay reset automatically.
Key Features
● Standard 86 box dimension,easily installed
● Sensitive touch
● Low power consumption, stable performance
● 2 color LED lights indicate power and communication status
Connections
| PIN Colour | Interface |
| 1 Red | 12V DC |
| 2 Black | Earth wire |
| 3 Yellow | Relay COM port |
| 4 Green | Relay normal open port |
| 5 Blue | Relay normal close port |
Specification
| Model | MG-EB100 |
| Dimension | 86*86*22mm |
| Temperature/Humidity | -5℃—+55℃，0—95%(non-condensing) |
| Power | DC 12V±10%,50mA Max |
| Indicate light | 2 LED lights indicate status, blue for stand-by, red when triggered |
